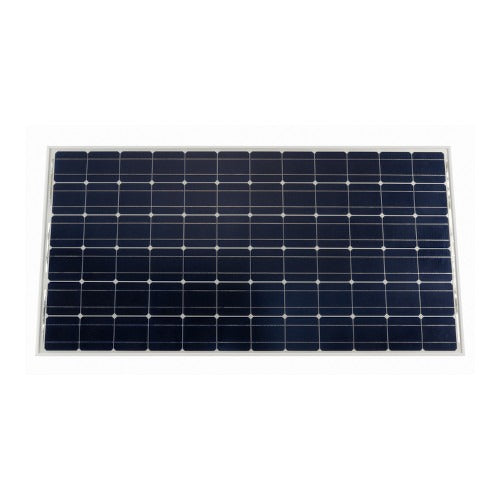

Victron Energy Solar Panel 20V 305W Mono series 4b – SPM043052002 on Sale

High stock levels available on all panels, please contact us via live chat for up-to-date stock before purchase, as stock levels are subject to change. Alternatively, you can email or call us.



• Low voltage-temperature coefficient enhances high-temperature operation.
• Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
• 25-Year limited warranty on power output and performance.
• 5-Year Limited warranty on materials and workmanship.
• Sealed, waterproof, multifunctional junction box gives high level of safety.
• High performance bypass diodes minimize the power drop caused by shade.
• Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
• A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
• Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
• Pre wired quick-connect system with PV-ST01 connectors.

•

  Brand		Victron Energy
  Manufacturer Part Number		SPM043052002
  gtin		8719076057772
  Voltage		20V
  Nominal Power		305W
  Cell Type		Monocrystalline
  Number of Cells in Series		72
  Maximum System Voltage		1000V
  Dimensions		L1658 x W1002 x D35mm
  Weight		19Kg
  Warranty		5 Years
  Country of Manufacture		China
