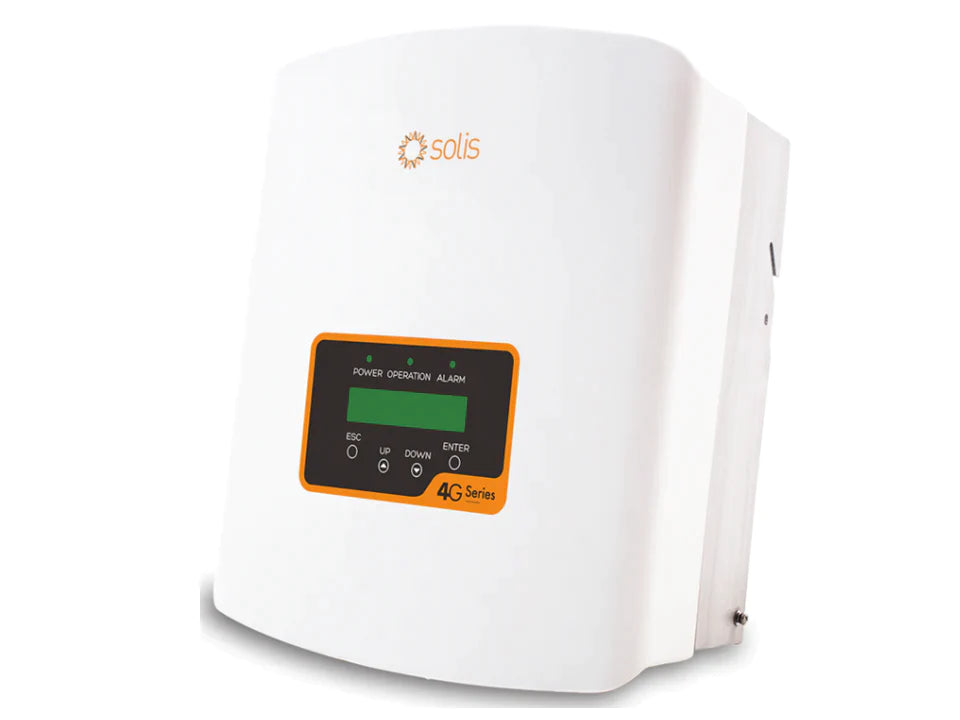

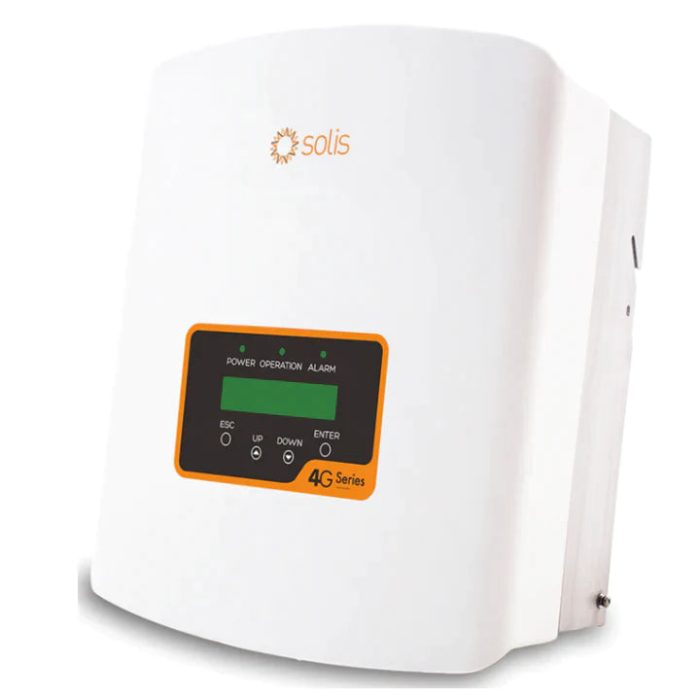

Solis S6 Mini 3.6kW 1MPPT 1PH Inverter – with DC isolator For Sale
24 people are viewing this right now
10 products sold in last 19 hours
Selling fast! Over 18 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Part No: SOL-3.6-MINI-S6-DCÂ Inverters – Main Units
- Rating: 3,600W
- Phases: 1
- Super high frequency switching technology with maximum efficiency of 97.3%
- Max PV Power of 5.4kW
- DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.
- Wide voltage range – Ultra low start-up voltage of 90V and max PV input voltage of 500V
- Intergrated Export Power Manager (EPM)
- Integrated AFCI (DC arc-fault circuit protection)
- Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
- 5-year standard warranty
-
- Supplier Part No: S6-GR1P3.6K-M-DC
- Weight: 7.7 kg
- Rated Power: 3,600 W
- Min PPT Voltage: 90 V
- Max PPT Voltage: 500 V
- DC Startup Voltage: 90 V
- DC Shutdown Voltage: 80 V
- Max Input Voltage: 600 V
- Max DC Power: 5,400 W
- Max AC Power (5 Minutes): 3,600 W
- Surge AC Power (1 Second): 3,600 W
- Max DC Current: 19 A
- Max DC Inputs: 2
- Has DC Fuses: 0
- Connector: MC4Â Â
- Included Connectors: 1
- Euro Efficiency: 96.8 %
- Transformer: None
- MPPT Quantity : 1
- Has Integrated DC Switch: Yes
- Warranty: 5 years
Â
Title Default Title
Related products
- Supplier Part No: S6-GR1P3.6K-M-DC
The All New Solis Mini 6S Series Grid-tie Inverter. Compact and lightweight design, for easy installation. Fanless, minimal noise, producing less than 20 dBA. Compatible with high-efficiency modules and bi-facial modules.
